26/35KV Cable Outdoor terminal head

Applicable to the voltage level 21 / 35KV, 26 / 35KV single-core, three-core cross-linked power cable connection. From the role of sealing, insulation, pressure evacuation. Particularly applicable to petroleum, chemical, mining and other flammable and explosive places.

◆ 35KV single-core indoor / outdoor cooling terminal specifications;

Voltage level	Model	The application of cable section（mm2） 18/20KV	The cable core insulation diameter（mm）
26/35KV Single core indoor / outdoor (N) (W) terminal and intermediate connection (J)	LSN/W/J-1/1	35-70	30.0-35.0
	LSN/W/J-1/2	95-185	35.0-40.0
	LSN/W/J-1/3	240-400	38.0-49.0

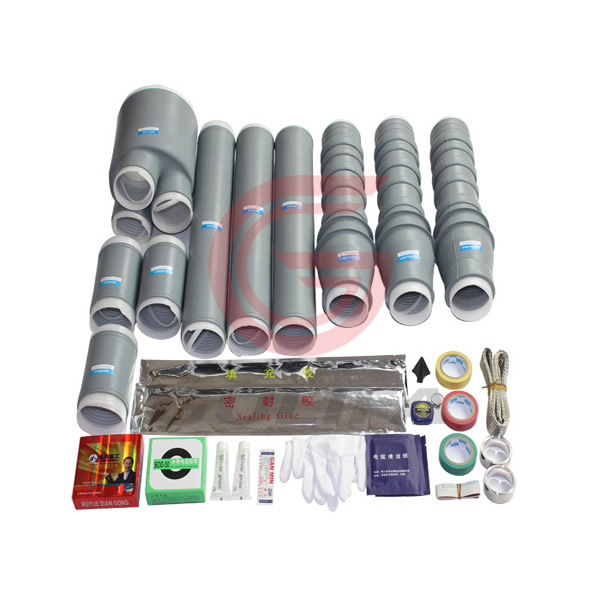

The 35KV single core indoor / outdoor and terminal fittings;

Cold terminal	Filling glue	PVC	Color ring
Protective sleeve	Braided wire	Sealant	Gauze
Cold sealing tube	J-30	Construction gloves	The installation process
Constant spring	Tape	Cleaning paper	Certificate
Semi conductive tape	Grease Paste	Band-aid
