12/24KV Cable Outdoor terminal head

Applicable to the voltage level 12 / 20KV, 18 / 20KV, 18 / 30KV single-core, three-core XLPE power cable connection. From the role of sealing, insulation, pressure evacuation. Advanced post-injection process, a better solution to the PD problem, to ensure the safe and reliable operation. Particularly applicable to petroleum, chemical, mining and other flammable and explosive places.

◆ 20KV single-core indoor / outdoor cooling terminal specifications;

Voltage level	Model	The application of cable section（mm2） 18/20KV	The application of cable section（mm2） 18/20KV	The line core insulation diameter（mm）
12/20（18/20） KV Indoor (outdoor) terminal and intermediate joint	LSN/W/J-3/1	35-95	/	18.0-22.5
	LSN/W/J-3/2	120-240	50-95	23.9-29.3/24.3-27.3
	LSN/W/J-3/3	300-400	120-185	31.5-34.5/28.9-32
	LSN/W/J-3/4	/	240-400	34.3-39.5

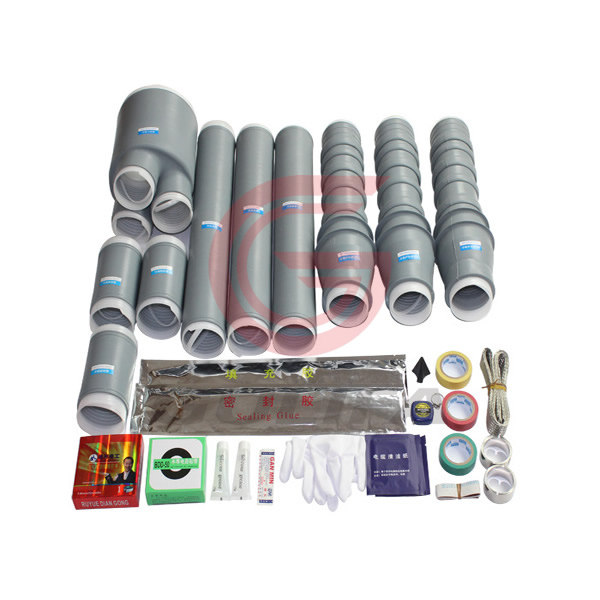

The 20KV single core indoor / outdoor and terminal fittings;

Cold terminal	Insulating tube	Three finger	Seal ring	Filling glue
Sealant	Constant spring	Triangular cone pad	Color ring	PVC
Braided wire	Semi conductive tape	J-20	Grease Paste	Cleaning paper
Kerchief	White gloves	Gauze	Tape	Card
Band aid	Certificate	The installation process
