8.7/15KV Cable Outdoor terminal head

Applicable to the voltage level 3.6 / 6.6KV, 6 / 10KV, 8.7 / 10KV, 8.7 / 15KV single-core, cross-linked power cable connection. From the role of sealing, insulation, pressure evacuation. Particularly applicable to petroleum, chemical, mining and other flammable and explosive places.

◆ 10KV single-core indoor / outdoor cooling terminal specifications;

Voltage level	Model	The application of cable section（mm2）	The cable core insulation diameter (mm）
8.7/7.15KVSingle core indoor (N)/ Outdoor (W) terminal and intermediate connection (J)	LSN/W/J-1/1	25-50	12.35-20.7
	LSN/W/J-1/2	70-120	20.7-26.9
	LSN/W/J-1/3	150-240	26.5-32.7
	LSN/W/J-1/4	300-400	31.9-40.9

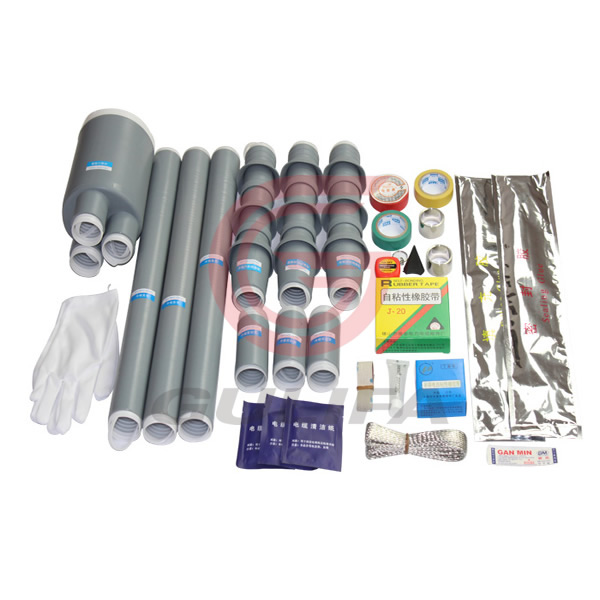

◆10KV single core indoor / outdoor shrink terminal fittings;

Cold terminal	Semi conductive tape	PVC	J-20
Protective sleeve	Filling glue	Color ring	Tie
Insulating tube	Braided wire	Construction gloves	Card
Sealed tube	Tape	Cleaning paper	The installation process
Constant spring	Grease Paste	Band aid	Certificate
