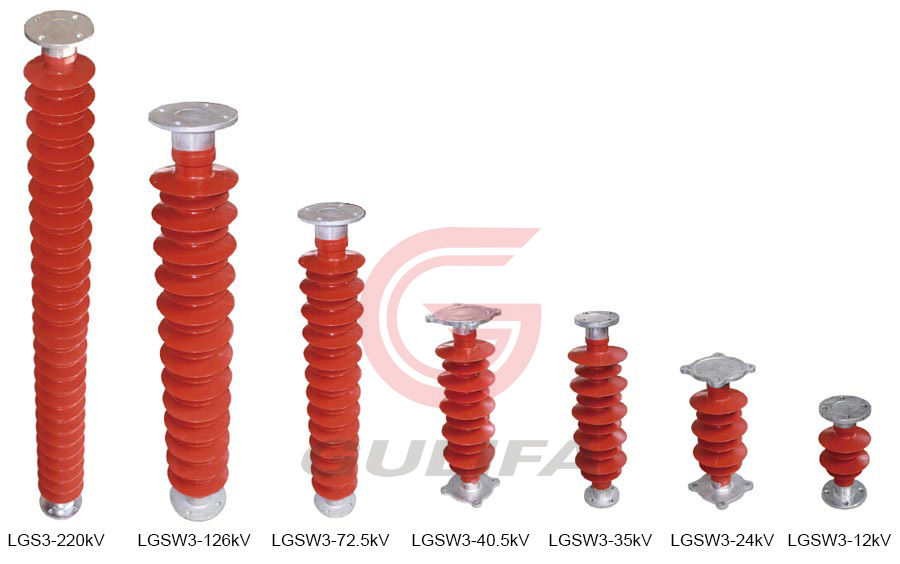

Composite pillar insulator

use

This product is suitable for power station facilities. Has good hydrophobic, anti-aging, resistance to traceability and resistance to corrosion, with high bending strength, its impact resistance, shock and anti-brittle fracture performance, light weight, easy installation, its The item and bottom mounting dimensions are the same size as the corresponding pillars.

Serial number	Product model	Rated mechanical failure load		The height of the structure(mm)	Minimum arc distance (mm)	The minimum nominal creepage distance(mm)	Standard full lightning impulse withstand voltage (peak) (kV)	1min power frequency wet withstand voltage (RMS) not less than(kV)	The maximum operating voltage equipment (KV)
Serial number	Product model	Bend(KN)	Reverse(KN.m)	The height of the structure(mm)	Minimum arc distance (mm)	The minimum nominal creepage distance(mm)			The maximum operating voltage equipment (KV)
1	LGSW3-12/5	5	0.6	215	130	380	75	45	12
2	LGSW3-24/8	80	4	320	220	580	120	60	24
3	LGSW-35/5	5	2	450	300	1200	230	95	35
4	LGSW3-40.5/6	6	1.5	500	380	1220	230	95	40.5
5	LGS3-72.5/8	8	2	770	635	1820	325	140	72.5
6	LGSW3-110/8	8	2	770	635	1820	325	140	72.5
7	LGSW3-220/10	10	4	760	610	1820	325	140	72.5
