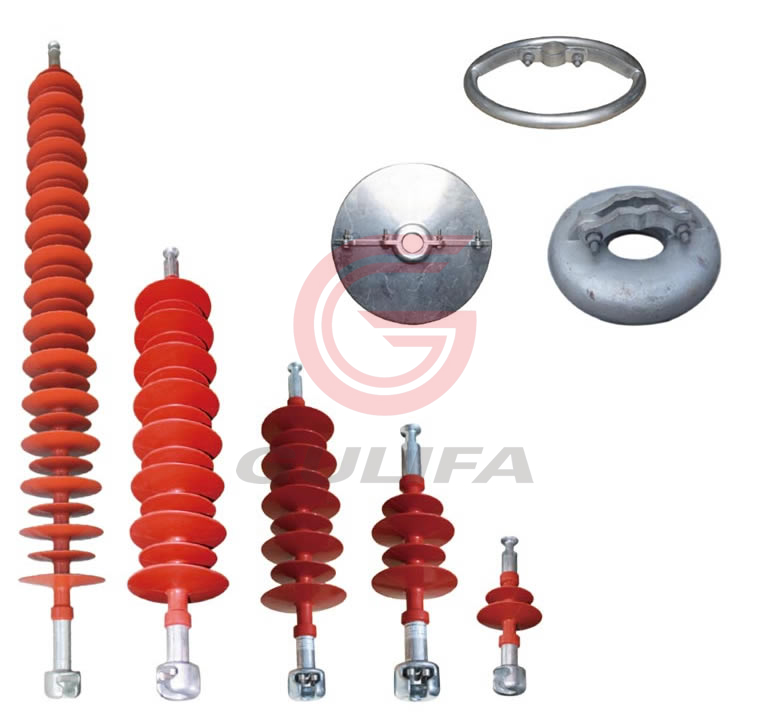

Composite suspension insulator

use

This product is particularly suitable for dirty areas, high mechanical load, large span and compact lines. With a light weight, small size, not broken and so on.

serial number	product number	rated voltage （kV）	link structure tag	rated mechanical tensile load (KN)	structural height (mm)	minimum arc distance (mm)	minimum nominal creepage distance (mm)	umbrella path(mm)	lightning impulse withstand voltage(peak) （kV）	frequency1min withstand voltage （kV）
1	LGBW4-10/70	10	16WB	70	395±10	200	530	115/87	75	50
2	LGBW4-10/100	10	16WB	100	415±10	200	530	115/87	75	50
3	LGBW4-35/70	35	16WB	70	670±15	455	1350	140/110	230	95
4	LGBW4-35/100	35	16WB	100	700±15	455	1350	140/110	230	95
5	LGBW4-66/70	66	16WB	70	890±15	710	2210	142/112	410	185
6	LGBW4-66/100	66	16WB	100	930±15	710	2210	142/112	410	185
7	LGBW4-110/70	110	16WB	70	1240±15	1050	3150	142/112	550	230
8	LGBW4-110/100	110	16WB	100	1270±15	1050	3150	142/112	550	230
9	LGBW4-220/100	220	16WB	100	2210±30	2000	6300	142/112	1000	395
10	LGBW4-220/160	220	20R	160	2240±30	2000	6300	142/112	1000	395
